RFJ Abrasion-proof Auto-drain 29.8kW DD160 Evaporator for Large Frozen Food Processing Cold Warehouse

Name: RFJ Abrasion-proof Auto-drain 29.8kW DD160 Evaporator for Large Frozen Food Processing Cold Warehouse
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: डीडी-29.8/160
Price: 5,000.00 USD
Availability: InStock

ब्रांड नाम:	Ruifujie
मॉडल संख्या:	डीडी-29.8/160
एमओक्यू:	1
कीमत:	Discussed
प्रसव का समय:	1 महीना
भुगतान की शर्तें:	टी/टी, वेस्टर्न यूनियन

विस्तृत जानकारी

उत्पाद का वर्णन

विस्तृत जानकारी

उत्पत्ति के प्लेस:

चीन

नमूना:

डीडी-29.8/160

नाममात्र प्रशीतन क्षमता:

29.8 किलोवाट

मिलान क्षेत्र:

160㎡

रेटेड वोल्टेज:

380V

आवेदन:

शीत कक्ष, फ्रीजर

MOQ:

1सेट

गारंटी:

1 वर्ष

पैकिंग:

लकड़ी के बर्तनों का पैकिंग

पैकेजिंग विवरण:

लकड़ी का केस

आपूर्ति की क्षमता:

100पीसी

उत्पाद का वर्णन

RFJ Abrasion-proof Auto-drain 29.8kW DD160 Evaporator

Designed for large frozen food processing cold warehouses, this industrial evaporator delivers reliable, high-performance refrigeration with advanced auto-drain capabilities.

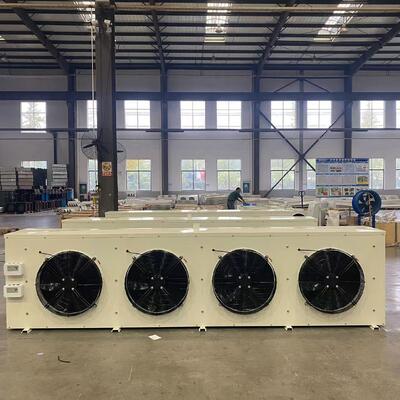

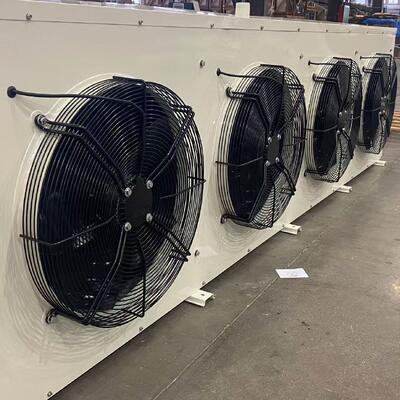

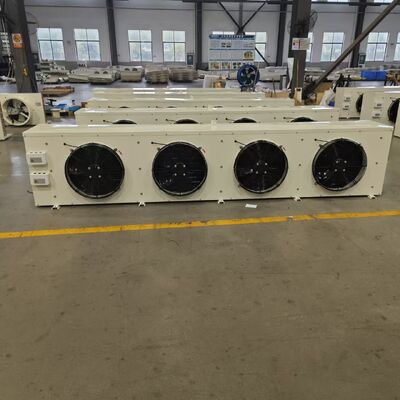

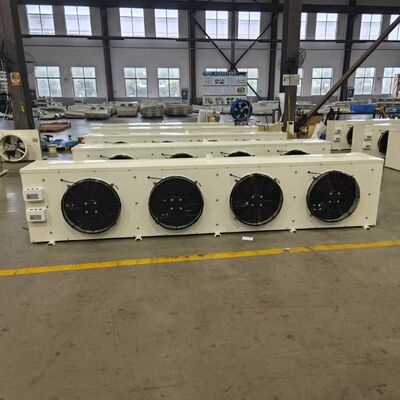

Product Images

Product Advantages

Superior Large-scale Refrigeration Capacity: Rated cooling power of 29.8kW matches 160㎡ large cold storage space, steadily sustaining low-temperature environment for bulk frozen meat and aquatic goods long-term stock preservation.
Full-space Homogenized Air Circulation: Delivers 24000m³/H large airflow paired with 15m fixed blowing range, eliminating layered temperature difference across different storage zones inside big cold warehouse.
Quadruple Industrial Fan Matching Structure: Four pieces of 500mm-diameter fans with single power 414W, powered by 380V industrial voltage to satisfy uninterrupted round-the-clock heavy-duty refrigeration operation.
High-power Split Independent Defrost System: 9600W fin heating power plus 4800W drain pan heating power, efficiently clearing accumulated thick frost under long-term high humidity working surroundings.
Optimized Large-diameter Refrigerant Pipeline: 25.8L internal tank volume with φ25 inlet & φ48 outlet pipe, improving refrigerant circulation efficiency and lifting overall heat exchange performance.

Technical Specifications

Parameter	Specification
Model	DD-29.8/160(DD160)
Nominal Refrigeration Capacity	29.8kW(29800W)
Applicable Cold Room Area	160㎡
Tube Volume	25.8L
Refrigerant Inlet/Outlet Diameter	φ25/φ48mm
Fan Quantity	4 units
Fan Diameter	500mm
Working Voltage	380V
Total Fan Power	1656W(4×414W)
Air Volume	24000m³/H
Air Throw Range	15m
Fin Defrost Power	9600W
Drain Pan Defrost Power	4800W

Company Profile

Shenzhen Ruifujie Technology Co., Ltd. has more than 20 years of industry experience, specializing in high-quality refrigeration products and refrigeration compressors. Our main products include scroll, piston, rotor, semi-hermetic and screw compressors, which are sold to Jaipur, New Delhi, the USA, UK, Russia and other global regions. We have rich experience in ice machines and cold storage equipment, offer customized OEM/ODM services, and are highly recognized by global customers for premium refrigeration compressors and reasonable prices.

Packaging and Shipping

Supply Ability	1000000 pieces/year, MOQ is usually one piece
Shipping Time	Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit
Shipping Method	Support by sea, by air, by express (DHL, FedEx, UPS...)
Payment Terms	TT/Western Union - 30% Advance Payment, 70% Final Payment
Shipping Port	Ningbo Port, Shanghai Port, Shenzhen Port

Frequently Asked Questions

Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.

Q: What are the main products?
A: Semi-hermetic compressor, Hermetic Compressor, Condenser Unit, Air Cooler, Spare Parts, Chillers and Evaporators

Q: What services and after-sales support do you provide?
A: We guarantee product quality with a 1-year warranty. Our team ensures reliable support throughout and after your purchase.

Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.

Q: What is your payment terms?
A: TT/WESTERN UNION

टैग:
