उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| उत्पत्ति के प्लेस: | Shenzhen China | ब्रांड नाम: | RFJ series |
|---|---|---|---|
| Type: | Condenser Unit | appliance:: | used for cold room |
| coor: | right | type:: | evaporator,condenser, |
| power supply:: | 220v-380v | Warranty:: | 1-2 years |
| Application:: | Refrigeration | Power Source:: | AC Power |
| हाई लाइट: | ac condenser unit,air cooled condensing unit |
||

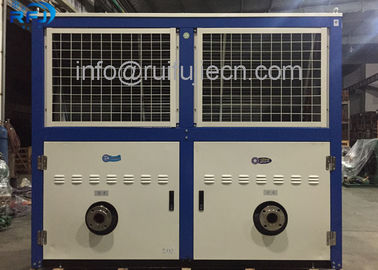

4TES-12Y in V box type condenser condensing unit for freezer room
Product Description
Characteristics:
1.Condensing unit for medium & high temperature (environment +12oC~ -10 oC)
2.Condensing unit for low temperature & frozen environment (-10 oC ~ -30 oC)
3.Equipped with YEMOO semi-hermetic piston compressor
4.Air cooled condensers are punched by high velocity ram machine. Folded by secondary operation :condenser coils are expanded by mechanical tube expansion to obtain high heat exchanging capacity.
5.Shell &tube water condensers use high efficient wire-whorled copper pipes which can highly increase condensers’ heat exchanging efficient. Take small volume and keep light weight All condensers are produced and inspected strictly based on “Pressure Vessel of Refrigeration equipment” to ensure products’ quality.
6.Equipped with well-known brand of refrigeration parts:
1)Normal configuration: filter drier, solenoid valve, double pressure controller, high & low pressure meter.
2)Standard configuration :vibration absorber, oil separator, filter drier, sight glass. solenoid valve, double pressure controller, high & low pressure meter.
7.We offer additional parts to meet your special requests.
Other components:
Receiver, solenoid valve, dry filter, sight glass, higher pressure meter, low pressure meter, pressure controller, unit frame
Optional components:
Shock absorber, oil separator, gas liquid separator
If you need any further information, please feel free to contact us.
We offer customize service, OEM welcomed!
| Box Type Compressor Condensing Unit Dimensions | |||||||
| Unit Model | A | B | C | D | H | H1 | Installation bore |
| RFJ-BRA09M/60 RFJ-BRA06H/60 | 1050 | 750 | 700 | 850 | 1380 | 1500 | 4-θ13 |
| RFJ-BRA12M/80 RFJ-BRA09H/80 | 1150 | 880 | 830 | 950 | 1500 | 1630 | 4-θ13 |
| RFJ-BRA14M/100 RFJ-BRA10H/100 | 1370 | 880 | 830 | 1170 | 1600 | 1730 | 4-θ13 |
| RFJ-BRA18M/120 RFJ-BRA12H/120 | 1450 | 950 | 900 | 1250 | 1600 | 1730 | 4-θ13 |
| RFJ-BRA23M/160 RFJ-BRA15H/160 | 1610 | 950 | 900 | 1410 | 1600 | 1730 | 4-θ13 |
| RFJ-BRA28M/200 RFJ-BRA20H/200 | 1710 | 950 | 900 | 1510 | 1650 | 1830 | 4-θ13 |
| RFJ-BRA34M/240 RFJ-BRA25H/240 | 2120 | 1050 | 1050 | 1920 | 1780 | 1900 | 4-θ13 |
| RFJ-BRA30H/270 | 2300 | 1050 | 1050 | 2100 | 1780 | 1900 | 4-θ13 |
| RFJ-BRA44M/300 RFJ-BRA35H/300 | 2450 | 1050 | 1050 | 2250 | 1780 | 1900 | 4-θ13 |
| Side Discharge Compressor Condensing Unit (Ⅶ Type) | ||||
| Product Description: 1.condensing unit was assembled completely,installation is not constraint by site,a little space occupation. 2.original compressor,inner of condensing unit with the perfect protection system. 3.on the design of side discharge,and condenser and compressor separate to increase the speed of heat transfer and efficiency maximum. 4.with external rotor motor,low noise,low power,large air volume. |
||||
| Technical Parameters | ||||
| performance Modle | RFJ080H(VII) | RFJ100H(VII) | ||
| Norminal refrigerating capacity (KW) |
13.0 | 16.5 | ||
| area(㎡) | 70 | 85 | ||
| Motor power (W) |
2*180W | 2*250W | ||
| Dia of fan (mm) | Φ400 | Φ450 | ||
| Number of electric motors (a) | 2 | 2 | ||
| Air Voume (M3/H) |
4500x2 | 5000x2 | ||
| dimension(mm) | L(mm) | 1700 | 1800 | |
| w(mm) | 700 | 750 | ||
| 850 | 940 | |||
| installation size(mm) | a(mm) | 1300 | 1400 | |
| b(mm) | 660 | 710 | ||
| performance Modle | RFJ120H(VII) | RFJ150H(VII) | RFJ200H(VII) | |
| Norminal refrigerating capacity (KW) |
21 | 25 | 29 | |
| area(㎡) | 105 | 130 | 130 | |
| Motor power (W) |
2*250W | 2*450W | 2*600W | |
| Dia of fan (mm) | Φ450 | Φ500 | Φ550 | |
| Number of electric motors (a) | 2 | 2 | 2 | |
| Air Voume (M3/H) |
5000x2 | 7000x2 | 8500x2 | |
| dimension(mm) | L(mm) | 1900 | 2000 | 2200 |
| w(mm) | 800 | 870 | 870 | |
| H(mm) | 1040 | 1150 | 1150 | |
| 1040 | 1150 | 1150 | ||
| installation size(mm) | a(mm) | 1500 | 1600 | 1800 |
| b(mm) | 760 | 830 | 830 | |
| Note:1.above datas are on the base of condensing temperature is 40℃ ,evaporation temperature is -18℃ , 2.reserve the right of design modified without prior inform. |
||||
