| Type: | Scroll | Configuration: | Stationary |
|---|---|---|---|
| Power Source: | AC Power | Voltage: | 380V/3PH/50HZ |
| Cooling capactiry: | 49800BTU | Hp: | 5hp |
| Refrigerant: | R22 | ||
| हाई लाइट: | screw type air compressor,copeland refrigeration compressors |
||

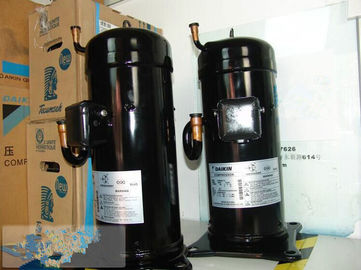

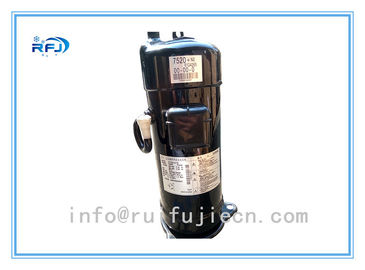

1. Model: JT160GABY1L
2. 4HP,380V/50HZ/3PH
3. Working R22 refrigerant
4. 15000W
5. COP:3.4
6. Technical Sheet
Daikin Scroll Compressor:
| Ref | Power Source | Model | Output | Performance | |||||
| (HP) | Testing Power | Nominal Capacity | Input | Current | COP | ||||
| Source | (KW) (BTU/H) | (KW) | (A) | (w/w) | |||||
| R22 | 1Φ | JT90GABV1L | 3hp | 220V/50Hz | 8.41 | 28710 | 2.56 | 11.9 | 3.3 |
| 220V/50Hz | JT95GABV1L | 3hp | 220V/50Hz | 9.07 | 30960 | 2.75 | 12.8 | 3.3 | |
| JT100GABV1L | 3hp | 220V/50Hz | 9.33 | 31850 | 2.83 | 13.2 | 3.3 | ||
| 3Φ | JT90GABY1L | 3hp | 380V/50Hz | 8.41 | 28710 | 2.47 | 4.36 | 3.4 | |
| 380V/50Hz | JT95GABY1L | 3hp | 380V/50Hz | 9.07 | 30960 | 2.67 | 4.62 | 3.4 | |
| JT125GABY1L | 4hp | 380V/50Hz | 11.7 | 39940 | 3.44 | 6 | 3.4 | ||
| JT160GABY1L | 5hp | 380V/50Hz | 14.6 | 49830 | 4.3 | 7.5 | 3.4 | ||
| JT170GABY1L | 5hp | 380V/50Hz | 15.6 | 53250 | 4.59 | 8.1 | 3.4 | ||
| 3Φ | JT125GA-Y1 | 4hp | 380V/50Hz | 11.7 | 39940 | 3.44 | 6 | 3.4 | |
| 380~415V | JT160GA-Y1 | 5hp | 380V/50Hz | 14.6 | 49830 | 4.3 | 7.5 | 3.4 | |
| 50Hz | JT170GA-Y1 | 5hp | 380V/50Hz | 15.6 | 53250 | 4.59 | 8 | 3.4 | |
1) High Efficiency
We provide high efficiency compressors by greater accurate maching, particular assembling and oil seal technology
2) Low Sound Levels
Using un-contact scroll, we have accomplished low sound power levels and low vibration
3) High Reliability, long operating life
DAIKIN compressor have fewer moving parts than others, low reiteration impulsion and low sliding velocity
4) Wide operating voltage range
DAIKIN compressor guaranteed within voltage range 10%
5) Special value
Due to simplifying system design and saving cost, it would enhance your product competitive in the market to us DAIKIN compressor
6) Certification: CE
7) Cooling capacity: 3hp, 3. 5hp, 4hp, 4. 5hp, 5hp, 6hp
8) Refrigerant: R22. R407c. R410a
9) Power: 220v-240v / 50hz, 380v-420v / 50hz, 380v-420v / 60hz
10) High ambient: 65 degree
| Series | Phase | Model No. | Rated Power HP |
Displacement CC/rev |
Cooling Capacity W |
input power W |
COP | Foot form |
| BC | 3ph | JT90BC-Y1L | 3 | 48.6 | 8540 | 2750 | 3.11 | 3 |
| JT90BCBY1L | 3 | 48.6 | 8540 | 2750 | 3.11 | 4 | ||
| JT90BCCY1L | 3 | 48.6 | 8540 | 2750 | 3.11 | Special | ||
| JT95BC-Y1L | 3 | 51.2 | 9020 | 2890 | 3.12 | 3 | ||
| JT95BCBY1L | 3 | 51.2 | 9020 | 2890 | 3.12 | 4 | ||
| JT95BCCY1L | 3 | 51.2 | 9020 | 2890 | 3.12 | Special | ||
| JT125BC-Y1L | 4 | 67 | 11900 | 3800 | 3.13 | 3 | ||
| JT125BCBY1L | 4 | 67 | 11900 | 3800 | 3.13 | 4 | ||
| JT160BC-Y1L | 5 | 83.1 | 15000 | 4660 | 3.22 | 3 | ||
| JT160BCBY1L | 5 | 83.1 | 15000 | 4660 | 3.22 | 4 | ||
| JT90BC-V1L | 3 | 48.6 | 8540 | 2890 | 2.96 | 3 | ||
| JT90BCBV1L | 3 | 48.6 | 8540 | 2890 | 2.96 | 4 | ||
| JT90BCCV1L | 3 | 48.6 | 8540 | 2890 | 2.96 | Special | ||
| JT95BC-V1L | 3 | 51.2 | 9030 | 3040 | 2.97 | 3 | ||
| JT95BCBV1L | 3 | 51.2 | 9030 | 3040 | 2.97 | 4 | ||
| JT95BCCV1L | 3 | 51.2 | 9030 | 3040 | 2.97 | Special | ||
| BH | 3ph | JT90BH-Y1L | 3 | 48.6 | 8550 | 2600 | 3.29 | 3 |
| JT90BHBY1L | 3 | 48.6 | 8550 | 2600 | 3.29 | 4 | ||
| JT95BH-Y1L | 3 | 50.8 | 9020 | 2740 | 3.29 | 3 | ||
| JT95BHBY1L | 3 | 50.8 | 9020 | 2740 | 3.29 | 4 | ||
| JT90BH-V1L | 3 | 48.6 | 8550 | 2630 | 3.25 | 3 | ||
| JT90BHBV1L | 3 | 48.6 | 8550 | 2630 | 3.25 | 4 | ||
| JT90BHCV1L | 3 | 48.6 | 8550 | 2630 | 3.25 | Special | ||
| JT95BH-V1L | 3 | 50.8 | 9020 | 2780 | 3.24 | 3 | ||
| JT95BHBV1L | 3 | 50.8 | 9020 | 2780 | 3.24 | 4 | ||
| JT95BHCV1L | 3 | 50.8 | 9020 | 2780 | 3.24 | Special |
