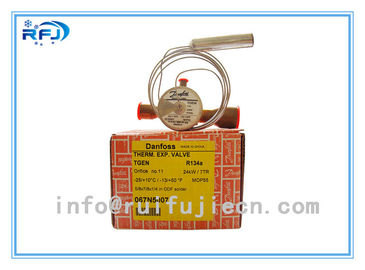

TGEZ Series Refrigeration Compressor Parts Refrigeration Service Valve R407c TGEZ 067N5007

Specifications:

1.  Regriratant: R22/R404A/R507
2. Thermostatic expansion valve regulate the flow of refrigerant liquid into The evaporator.
3. The flow is controlled by the valve is thermal bulb which is Attached to the suction line at the outlet of the evaporator.
4. The thermal Bulb senses the evaporator heat and adjusts the valve to admit refrigerant Liquid in accordance with the refrigerating load.

•  ETS series of electronic expansion valves are used in air conditioning and refrigeration systems, having precise control of liquid supply to the evaporator volume.
•  Linear positioning the valve plug and designed to achieve well-balanced, not only to provide two-way flow balance, but also to get a two-way closed function, like the solenoid valve.

• TYPE Qnom.TR	Nominal Capacity (Kw)	Connection ODF*ODF(inch)	Code No.
  TGEX 10
  TGEX3	10	3/8*5/8	067N2150
  TGEX3	10	1/2*5/8	067N2151
  TGEX4	14	1/2*7/8	067N2152
  TGEX6	20	1/2*5/8	067N2153
  TGEX6	20	1/2*7/8	067N2154
  TGEX6	20	5/8*7/8	067N2155
  TGEX7.5	27	5/8*7/8	067N2156
  TGEX11	38	5/8*7/8	067N2157
  TGEX11	38	5/8*1 1/8	067N2158
  TGEX 20
  TGEX12	43	5/8*7/8	067N2159
  TGEX12	43	5/8*1 1/8	067N2160
  TGEX15	54	5/8*1 1/8	067N2161
  TGEX15	54	7/8*1 1/8	067N2162
  TGEX18	63	7/8*1 1/8	067N2163
  TGEX18	63	7/8*1 3/8	067N2164
  TGE40
  TGEX26	92	7/8*1 3/8	067N2165
  TGEX26	92	1 1/8*1 3/8	067N2166
  TGEX30	104	7/8*1 3/8	067N2167
  TGEX30	104	1 1/8*1 3/8	067N2168
  TGEX38	104	1 1/8*1 3/8	067N2169
  TGEZ 12	42	5/8×7/8	067N4159
  TGEZ 12	42	5/8×11/8	067N4160
  TGEZ 15	53	5/8×11/8	067N4161
  TGEZ 15	53	7/8×11/8	067N4162
  TGEZ 18	62	7/8×11/8	067N4163
  TGEZ 18	62	7/8×13/8	067N4164
  TGEZ 2.5	9	3/8×5/8	067N4150
  TGEZ 2.5	9	1/2×5/8	067N4151
  TGEZ 3.5	13	1/2×7/8	067N4152
  TGEZ 5	19	1/2×5/8	067N4153
  TGEZ 5	19	1/2×7/8	067N4154
  TGEZ 5	19	5/8×7/8	067N4155
  TGEZ 7	25	5/8×7/8	067N4156
  TGEZ 10	36	5/8×7/8	067N4157
  TGEZ 10	36	5/8×11/8	067N4158
  TGEZ 24	84	7/8×13/8	067N4165
  TGEZ 24	84	11/8×13/8	067N4166
  TGEZ 27	95	7/8×13/8	067N4167
  TGEZ 27	95	11/8×13/8	067N4168
  TGEZ 34	121	11/8×13/8	067N4169

• Valve type	Refrigerant	Pressure (1/4 in/mm)	Capillary tube(mm)	Code no. (without MOP)
  TEX5	R22	Ext.	3	067B3250
  TEX12				067B3210
  TEX20				067B3274
  TEX55				067G3205
  TES5	R404a			067B3342
  TES12				067B3347
  TES20				067B3352
  TES55				067G3302



  Code	Type
  068Z7008	TEB 2 flare×flare connection
  068Z7009	TEB 2 flare×flare connection
  068Z3174	TEB 2 flare×solder connection
  068Z3518	TEB 2 flare×solder connection
  068Z7012	TEB 2 flare×solder connection
  068Z3348	TEN 2 flare×flare connection
  068Z3349	TEN 2 flare×flare connection
  068Z3370	TEN 2 flare×flare connection
  068Z3392	TEN 2 flare×flare connection
  068Z3385	TEN 2 flare×solder connection
  068Z3386	TEN 2 flare×solder connection
  068Z3389	TEN 2 flare×solder connection
  068Z3390	TEN 2 flare×solder connection
  068Z3403	TES 2 flare×flare connection
  068Z3404	TES 2 flare×flare connection
  068Z3405	TES 2 flare×flare connection
  068Z3407	TES 2 flare×flare connection
  068Z3409	TES 2 flare×flare connection
  068Z3411	TES 2 flare×flare connection
  068Z3415	TES 2 flare×solder connection
  068Z3417	TES 2 flare×solder connection
  068Z3419	TES 2 flare×solder connection
  068Z3421	TES 2 flare×solder connection
  068Z3422	TES 2 flare×solder connection
  068Z3424	TES 2 flare×solder connection
  068Z3426	TES 2 flare×solder connection
  068Z3428	TES 2 flare×solder connection
  068Z3430	TES 2 flare×solder connection
  068Z3437	TES 2 flare×solder connection
  068Z3209	TEX 2 flare×flare connection
  068Z3210	TEX 2 flare×flare connection
  068Z3211	TEX 2 flare×flare connection
  068Z3225	TEX 2 flare×flare connection
  068Z3227	TEX 2 flare×flare connection
  068Z3229	TEX 2 flare×flare connection
  068Z3277	TEX 2 flare×solder connection
  068Z3284	TEX 2 flare×solder connection
  068Z3290	TEX 2 flare×solder connection
  Expansion Valve Code	Type
  068Z3305	TEX 2 flare×solder connection
  068Z3311	TEX 2 flare×solder connection
  068Z3320	TEX 2 flare×solder connection
  068Z3359	TEX 2 flare×solder connection
  068Z3363	TEX 2 flare×solder connection
  068Z3367	TEX 2 flare×solder connection
  068Z3501	TEZ 2 flare×flare connection
  068Z3517	TEZ 2 flare×flare connection
  068Z3446	TEZ 2 flare×solder connection
  068Z3447	TEZ 2 flare×solder connection
  068Z3503	TEZ 2 flare×solder connection
  068Z3515	TEZ 2 flare×solder connection
  068Z3346	TN 2 flare×flare connection
  068Z3347	TN 2 flare×flare connection
  068Z3369	TN 2 flare×flare connection
  068Z3393	TN 2 flare×flare connection
  068Z3383	TN 2 flare×solder connection
  068Z3384	TN 2 flare×solder connection
  068Z3387	TN 2 flare×solder connection
  068Z3388	TN 2 flare×solder connection
  068Z3400	TS 2 flare×flare connection
  068Z3401	TS 2 flare×flare connection
  068Z3402	TS 2 flare×flare connection
  068Z3406	TS 2 flare×flare connection
  068Z3408	TS 2 flare×flare connection
  068Z3410	TS 2 flare×flare connection
  068Z3414	TS 2 flare×solder connection
  068Z3416	TS 2 flare×solder connection
  068Z3418	TS 2 flare×solder connection
  068Z3420	TS 2 flare×solder connection
  068Z3423	TS 2 flare×solder connection
  068Z3425	TS 2 flare×solder connection
  068Z3427	TS 2 flare×solder connection
  068Z3429	TS 2 flare×solder connection
  068Z3435	TS 2 flare×solder connection
  068Z3436	TS 2 flare×solder connection
  068Z3206	TX 2 flare×flare connection
  068Z3207	TX 2 flare×flare connection
  068Z3208	TX 2 flare×flare connection
  068Z3224	TX 2 flare×flare connection
  068Z3226	TX 2 flare×flare connection
  068Z3228	TX 2 flare×flare connection
  068Z3276	TX 2 flare×solder connection
  068Z3281	TX 2 flare×solder connection
  068Z3287	TX 2 flare×solder connection
  068Z3302	TX 2 flare×solder connection
  068Z3308	TX 2 flare×solder connection
  068Z3319	TX 2 flare×solder connection
  068Z3357	TX 2 flare×solder connection
  068Z3361	TX 2 flare×solder connection

•
