| Refrigerant: | R22 | Type: | Expansion Valve |
|---|---|---|---|
| Export Markets: | Global | Application: | Refrigeration Parts |
| Material: | Brass | Valve Type: | Angleway |
| Connection type: | Flare/Flare/Flare | Temperature: | -40/+10 |
| हाई लाइट: | refrigerator tools,danfoss expansion valve |
||

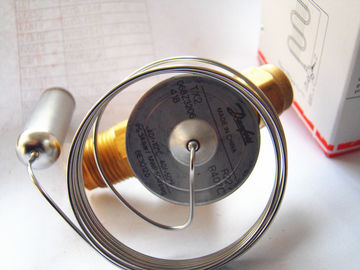

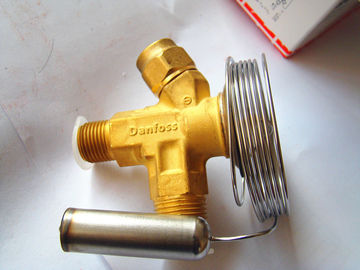

Tes20 Series Refrigeration Valves ( 067b3352 ) R404a / R507
Specifications:
thermostatic expansion valves(Tex2)
Regriratant: R22/R404A/R507
Thermal expansion valve, expansion valve,thermostatic expansion valve,A/C expansion valve Type
TEX2 belong the Outer balance
Thermostatic expansion valve regulate the flow of refrigerant liquid into the evaporator.
The flow is controlled by the valve.
The thermal bulb senses the evaporator heat and adjusts the valve to admit refrigerant liquid in accordance with the refrigerating load.
More information please check below file:
| Refrigerant | Model | equalizer | Capillary | Connection size | code | ||||
| inlet×outlet | N series -40+10 |
N series -40-5 |
NL series -40-15 |
||||||
| m | in.×in. | mm×mm | Without mop | With mop | Without mop | With mop | |||
| R22 | TX 2 | internal | 1.5 | 3/8*1/2 | 10*12 | 068Z3206 | 068Z3208 | 068Z3224 | 068Z3226 |
| TEX 2 | external | 1.5 | 3/8*1/2 | 10*12 | 068Z3209 | 068Z3211 | 068Z3225 | 068Z3227 | |
| R134a | TN 2 | internal | 1.5 | 3/8*1/2 | 10*12 | 068Z3346 | 068Z3347 | 068Z3393 | 068Z3369 |
| TEN 2 | external | 1.5 | 3/8*1/2 | 10*12 | 068Z3348 | 068Z3349 | 068Z3392 | 068Z3370 | |
| R404A /R507 |
TS 2 | internal | 1.5 | 3/8*1/2 | 10*12 | 068Z3400 | 068Z3402 | 068Z3406 | 068Z3408 |
| TES 2 | external | 1.5 | 3/8*1/2 | 10*12 | 068Z3403 | 068Z3405 | 068Z3407 | 068Z3409 | |
| R12 | TF 2 | internal | 1.5 | 3/8*1/2 | 10*12 | 068Z3202 | 068Z3236 | 068Z3220 | 068Z3222 |
| TEF 2 | external | 1.5 | 3/8*1/2 | 10*12 | 068Z3204 | 068Z3237 | 068Z3221 | 068Z3223 | |
| R502 | TY 2 | internal | 1.5 | 3/8*1/2 | 10*12 | 068Z3212 | 068Z3214 | 068Z3230 | 068Z3232 |
| TEY 2 | external | 1.5 | 3/8*1/2 | 10*12 | 068Z3215 | 068Z3217 | 068Z3231 | 068Z3233 |
|
