| ब्रांड नाम: | Tecumseh |
| मॉडल संख्या: | CAJ9510T |
| एमओक्यू: | 1pcs |
| कीमत: | discussed |
| प्रसव का समय: | 7-10 working days after receiving payment |
| भुगतान की शर्तें: | L/C, T/T, Western Union |

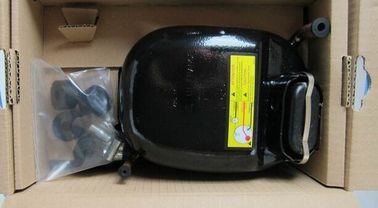

Tecumseh Reciprocating Compressor CAJ9510T-F1 F VATC
Tecumseh Reciprocating Compressor,
1,Model :CAJ9510T-F1 F VATC,MBP/HBP
2,Refrigerant: R22
3,Voltage:220~240V/50HZ,1Hp
4Datas as follow:
| Refrigeration Capacity | Input Power | ||||
| Condition | Test Voltage | Btu/h | kcal/h | W | W |
| EN12900 ASERCOM | 230V ~ 50HZ | 4307 | 1085 | 1262 | 749 |
| Efficiency | EVAP TEMP | COND TEMP | AMBIENT TEMP | RETURN GAS | LIQUID TEMP | ||
| Btu/Wh | kcal/Wh | W/W | |||||
| 5.75 | 1.45 | 1.68 | -10°C (14°F) | 45°C (113°F) | 32°C (90°F) | 0°C (32°F) | 45°C (113°F) |
| Evaporating Temp. Range: | -23.3°C to 12.8°C (-10°F to 55°F) |
| Motor Torque: | High Start Torque (HST) |
| Compressor Cooling: | Fan |
| Weight: | 22.922 |
| Weight Unit of Measure: | N/A |
| Displacement (cc): | 18.3 |
| Oil Type: | Mineral |
| Viscosity (cSt): | 68 |
| Oil Charge (cc): | 887 |
| Sound Power dB(A): | N/A |
| Voltage Range (50 Hz): | 198-253 |
| Voltage Range (60 Hz): | N/A |
| Locked Rotor Amps (LRA): | 29 |
| Rated Load Amps (RLA 50 Hz): | 4.7 |
| Rated Load Amps (RLA 60 Hz): | 4.7 |
| Max. Continuous Current (MCC in Amps): | 7.5 |
| Motor Resitance (Ohm) - Main: | 2.4 |
| Motor Resitance (Ohm) - Start: | 10.3 |
| Motor Type: | CSR |
| Overload Type: | EXTERNAL |
| Relay Type: | Potential Relay |
Specifications:
Tecumseh compressor:
Reciprocating for commercial and domestic refrigeration and air conditioning applications.
Rotary for air conditioning and commercial refrigeration applications.
We can supply more models as follow:
|

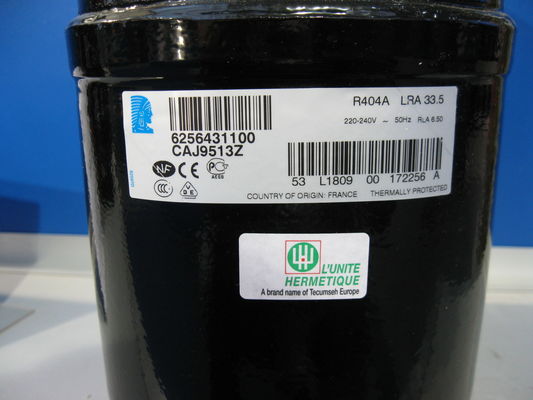

L' UNITE HERMETIQUE HERMETIC COMPRESSORS |
|||
|
|
|
|
|
|
MODEL |
HP |
TEMP |
REFRIGERANT |
|
AEZ2415Z |
7/16 |
L |
R404 |
|
CAE2417Z |
7/16 |
||
|
CAE2420Z |
1/2 |
||
|
CAE2424Z |
5/8 |
||
|
CAJ2428Z |
3/4 |
||
|
TAJ2428Z |
3/4 |
||
|
CAJ2432Z |
3/4 |
||
|
CAJ2440Z |
1 |
||
|
CAJ2446Z |
1 |
||
|
TAJ2446Z |
1 |
||
|
CAJ2464Z |
1-1/2 |
||
|
TAJ2464Z |
1-1/2 |
||
|
CAJ2480Z |
2 |
||
|
TAJ2480Z |
2 |
||
|
FH2511Z |
3 |
||
|
TFH2511Z |
3 |
||
|
TAG/TAGP 2516Z |
4 |
||
|
TAG/TAGP 2522Z |
6 |
||
|
TAGD2532Z |
8 |
||
|
TAGD2544Z |
12 |
||
|
AEZ4440Z |
1/3 |
M/H |
|
|
AEZ9440Z |
1/3 |
||
|
AE3450Z |
3/7 |
||
|
CAE4450Z |
3/7 |
||
|
CAE9450Z |
3/7 |
||
|
CAE9460Z |
1/2 |
||
|
CAE9470Z |
9/16 |
||
|
CAJ9480Z |
5/8 |
||
|
TAJ9480Z |
5/8 |
||
|
CAJ9510Z |
1 |
||
|
TAJ9510Z |
1 |
||
|
CAJ9513Z |
1-1/8 |
||
|
TAJ9513Z |
1-1/8 |
||
|
CAJ4517Z |
1-1/4 |
||
|
TAJ4517Z |
1-1/4 |
||
|
CAJ4519Z |
1-3/4 |
||
|
TAJ4519Z |
1-3/4 |
||
|
FH4522Z |
2 |
||
|
TFH4522Z |
2 |
||
|
FH4524Z |
2 |
||
|
TFH4524Z |
2 |
||
|
FH4531Z |
2-3/4 |
||
|
TFH4531Z |
2-3/4 |
||
|
FH4540Z |
3-1/2 |
||
|
TFH4540Z |
3-1/2 |
||
|
AEZ4430Y |
1/4 |
M/H |
R134a |
|
AE3440Y |
1/3 |
||
|
CAE4440Y |
1/3 |
||
|
CAE4448Y |
3/7 |
||
|
CAE4456Y |
7/16 |
||
|
CAJ4452Y |
3/7 |
||
|
CAJ4461Y |
1/2 |
||
|
TAJ4461Y |
1/2 |
||
|
CAJ4476Y |
5/8 |
||
|
CAJ4492Y |
3/4 |
||
|
TAJ4492Y |
3/4 |
||
|
CAJ4511Y |
1 |
||
|
TAJ4511Y |
1 |
||
|
FH4518Y |
1-1/2 |
||
|
TFH4518Y |
1-1/2 |
||
|
FH4525Y |
2 |
||
|
TFH4525Y |
2 |
||
|
CAE2417L |
1/2 |
L |
R502 |
|
CAJ2428L |
5/8 |
||
|
TAJ2428L |
5/8 |
||
|
CAJ2432L |
3/4 |
||
|
CAJ2446L |
1 |
||
|
TAJ2446L |
1 |
||
|
CAJ2464L |
1-1/2 |
||
|
TAJ2464L |
1-1/2 |
||
|
TAH2480J |
2 |
||
|
TAH2511K |
3 |
||
|
TAHD2516J |
4 |
||
|
TAHD2522K |
6 |
||
|
TAG2516K |
4 |
||
|
TAG2522K |
6 |
||
|
AEZ4430E |
1/4 |
M/H |
R22 |
|
AEZ3430E |
1/4 |
||
|
AEZ3440E |
1/3 |
||
|
AEZ4440E |
1/3 |
||
|
AEZ9440T |
1/3 |
||
|
AE3450E |
3/7 |
||
|
CAE4450E |
3/7 |
||
|
CAE9450E |
3/7 |
||
|
CAE9460E |
1/2 |
||
|
CAJ9480T |
5/8 |
||
|
TAJ9480T |
5/8 |
||
|
CAJ9510T |
1 |
||
|
TAJ9510T |
1 |
||
|
CAJ9513T |
1-1/8 |
||
|
TAJ9513T |
1-1/8 |
||
|
CAJ4517E |
1-1/4 |
||
|
CAJ4519T |
1-3/4 |
||
|
TAJ4519T |
1-3/4 |
||
|
FH4522F |
2 |
||
|
TFH4522F |
2 |
||
|
FH4524F |
2 |
||
|
TFH4524F |
2 |
||
|
FH4531F |
2-3/4 |
||
|
TFH4531F |
2-3/4 |
||
|
TFH4538E |
3 |
||
|
TFH4540F |
3-1/2 |
||
|
TAG/TAGP 4546T |
4 |
||
|
TAG/TAGP 4553T |
4-1/2 |
||
|
TAG/TAGP 4561T |
5 |
||
|
TAG/TAGP 4568T |
6 |
||
|
TAG/TAGP 4573T |
6 |
||
|
TAGD4590T |
7-1/2 |
||
|
TAGD4610T |
9 |
||
|
TAGD4612T |
10 |
||
|
TAGD4614T |
12 |
||
| NO | Model | Refrigerant | Horse Power |
| 1 | CAJ4461A-F1 G VA TC | R12 | 1/2 HP |
| 2 | CAJ4492A-F1 G VA TC | R12 | 3/4 HP |
| 3 | CAJ4511A-F1 G VA TC | R12 | 1 HP |
| 4 | CAE4440Y-F1 FTU | R134A | 3/8 HP |
| 5 | CAE4456Y-F2 FTU | R134A | 7/16 HP |
| 6 | CAJ4492Y-F1 TU | R134A | 3/4 HP |
| 7 | CAJ4511Y-F1 F VA TC | R134A | 1 HP |
| 8 | CAJ4461Y-F1 TU | R134A | 1/2 HP |
| 9 | CAJ4511Y-F1 TU | R134A | 1 HP |
| 10 | CAJ4476Y-F1 F TU | R134A | 5/8 HP |
| 11 | CAJ4461Y-F1 F VA TC | R134A | 1/2 HP |
| 12 | AEZ3440E-F2 FTU | R22 | 1/3 HP |
| 13 | CAE9460T-F2 FTU | R22 | 1/2 HP |
| 14 | AJ5510F-F1 F PSC TU | R22 | 3/4 HP |
| 15 | AJ5518E-F1 F CSR TU | R22 | 1-1/4 HP |
| 16 | CAE2420E-F2 GTU | R22 | 1/2 HP |
| 17 | CAJ9480T-F1 F VATC | R22 | 5/8 HP |
| 18 | CAJ9510T-F1 F VATC | R22 | 1 HP |
| 19 | CAJ9513T-F1 F VATC | R22 | 1-1/8 HP |
| 20 | CAJ9513T-F1 TU | R22 | 1-1/8 HP |
| 21 | CAJ4517E-F1 F VA TC | R22 | 1-1/4 HP |
| 22 | TAJ9510T-F1 F TU | R22 | 1 HP |
| 23 | CAJ4519T-F1 G VA TC | R22 | 1-3/4 HP |
| 24 | CAJ4519T-F1 G TU | R22 | 1-3/4 HP |
| 25 | CAJ2427E-F1 G TU | R22 | 3/4 HP |
| 26 | CAJ2439E-F1 G TU | R22 | 1 HP |
| 27 | TAJ9510T-F1 F VA TC | R22 | 1 HP |
| 28 | CAJ9480T-F1 F TU | R22 | 5/8 HP |
| 29 | CAJ9510T-F1 F TU | R22 | 1 HP |
| 30 | AJ5512E-F1 G PSC TU | R22 | 1 HP |
| 31 | AJ5515E-F1 G PSC TU | R22 | 1-1/4 HP |
| 32 | CAJ9510Z-F1 FTU | R404A | 1HP |
| 33 | TAJ2446Z-F1TVATC | R404A | 1HP |
| 34 | TAJ2464Z-F1 TTU | R404A | 1.5HP |
| 35 | CAE2420Z-F2 FTU | R404A | 1/2 HP |
| 36 | CAE2424Z-F2 FTU | R404A | 5/8 HP |
| 37 | CAE9460Z-F2 FTU | R404A | 1/2 HP |
| 38 | CAJ4519Z-F1 F VA TC | R404A | 1-3/4 HP |
| 39 | CAJ2446Z-F1 F TU | R404A | 1 HP |
| 40 | CAJ2464Z-F1 F VA TC | R404A | 1-1/2 HP |
| 41 | CAJ2440Z-F1 F VA TC | R404A | 1 HP |
| 42 | CAJ4517Z-F1 F TU | R404A | 1-1/4 HP |
| 43 | CAJ4519Z-F1 F TU | R404A | 1-3/4 HP |
| 44 | CAJ9510Z-F1 F VA TC | R404A | 1 HP |
| 45 | CAJ9513Z-F1 F VA TC | R404A | 1-1/8 HP |
| 46 | CAJ4517Z-F1 F VA TC | R404A | 1-1/4 HP |
| 47 | CAJ9513Z-F1 F TU | R404A | 1-1/8 HP |
| 48 | CAJ2428Z-F1 F TU | R404A | 3/4 HP |
| 49 | CAJ2432Z-F1 F VA TC | R404A | 3/4 HP |
| 50 | CAJ2446Z-F1 F VA TC | R404A | 1 HP |
