| ब्रांड नाम: | Maneurop |
| मॉडल संख्या: | MLZ045T4LP9 |
| एमओक्यू: | 1pcs |
| कीमत: | discussed |
| प्रसव का समय: | 7-10 working days after receiving payment |
| भुगतान की शर्तें: | एल/सी, टी/टी, वेस्टर्न यूनियन |
| नमूना | हिमाचल प्रदेश | स्वेप्ट वॉल्यूम (सेमी³/रेव) | विस्थापन (m³/h) | जैकेट के बिना ध्वनि शक्ति | जैकेट के साथ ध्वनि शक्ति | नेट वजन / किग्रा) | तेल प्रभार (एल) | चूषण | स्राव होना |
|---|---|---|---|---|---|---|---|---|---|
| एमएलजेड015 | 2 | 31 | 1.1 | 3/4" | 1/2" | ||||
| MLZ019 | 2.5 | 43.5 | 7.6 | 65 | 57 | ||||
| एमएलजेड021 | 3 | 46.2 | 8 | ||||||
| एमएलजेड026 | 3.5 | 57.1 | 9.9 | 67 | 59 | ||||
| एमएलजेड030 | 4 | 68.8 | 12 | 70 | 62 | 37 | 1.6 | 7/8" | |
| एमएलजेड038 | 5 | 81 | 14.1 | 71 | 63 | ||||
| एमएलजेड045 | 6 | 98.6 | 17.2 | ||||||
| एमएलजेड048 | 7 | 107.5 | 18.7 | 72 | 64 | 3/4" | |||
| एमएलजेड058 | 7.5 | 126 | 21.9 | 74 | 66 | 44 | 2.7 | 1-1/8" | 7/8" |
| एमएलजेड066 | 9 | 148.8 | 25.9 | 45 | |||||
| एमएलजेड076 | 10 | 162.4 | 28.3 |
| tc\te | -15 | -10 | -5 | 0 | 5 | 10 | 15 |
|---|---|---|---|---|---|---|---|
| 25 | 5,853 | 7,392 | 9,238 | 11,389 | - | - | - |
| 30 | 5,541 | 7,022 | 8,808 | 10,898 | 13,292 | 15,987 | - |
| 35 | 5,226 | 6,640 | 8,357 | 10,378 | 12,700 | 15,323 | 18,246 |
| 40 | 4,912 | 6,249 | 7,889 | 9,830 | 12,071 | 14,612 | 17,452 |
| 45 | 4,600 | 5,851 | 7,404 | 9,256 | 11,407 | 13,857 | 16,604 |
| 50 | - | 5,449 | 6,905 | 8,659 | 10,711 | 13,060 | 15,705 |
| 55 | - | 5,045 | 6,394 | 8,041 | 9,984 | 12,223 | 14,757 |
| 60 | - | - | 5,874 | 7,404 | 9,229 | 11,349 | 13,762 |
| 65 | - | - | 5,347 | 6,751 | 8,449 | 10,440 | 12,722 |
| 70 | - | - | - | 6,083 | 7,644 | 9,497 | 11,640 |
| tc\te | -15 | -10 | -5 | 0 | 5 | 10 | 15 |
|---|---|---|---|---|---|---|---|
| 25 | 1,725 | 1,756 | 1,775 | 1,786 | - | - | - |
| 30 | 1,926 | 1,962 | 1,986 | 2,001 | 2,011 | 2,020 | - |
| 35 | 2,144 | 2,184 | 2,213 | 2,233 | 2,249 | 2,263 | 2,280 |
| 40 | 2,383 | 2,427 | 2,461 | 2,486 | 2,507 | 2,528 | 2,551 |
| 45 | 2,645 | 2,694 | 2,733 | 2,764 | 2,791 | 2,817 | 2,846 |
| 50 | - | 2,989 | 3,032 | 3,069 | 3,101 | 3,134 | 3,170 |
| 55 | - | 3,313 | 3,363 | 3,405 | 3,444 | 3,482 | 3,525 |
| 60 | - | - | 3,727 | 3,776 | 3,820 | 3,866 | 3,915 |
| 65 | - | - | 4,130 | 4,184 | 4,235 | 4,288 | 4,344 |
| 70 | - | - | - | 4,634 | 4,692 | 4,751 | 4,815 |
|
|
| ब्रांड नाम: | Maneurop |
| मॉडल संख्या: | MLZ045T4LP9 |
| एमओक्यू: | 1pcs |
| कीमत: | discussed |

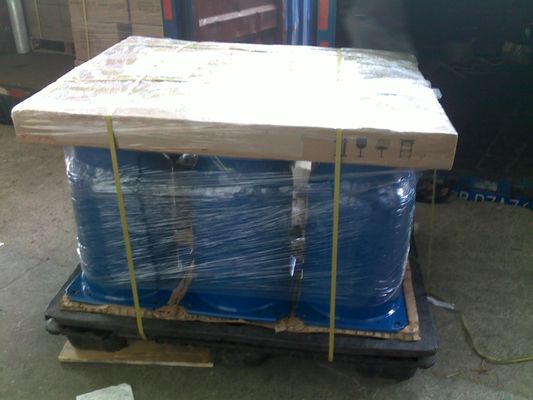

| पैकेजिंग विवरण: | Wooden case |
| भुगतान की शर्तें: | एल/सी, टी/टी, वेस्टर्न यूनियन |
| नमूना | हिमाचल प्रदेश | स्वेप्ट वॉल्यूम (सेमी³/रेव) | विस्थापन (m³/h) | जैकेट के बिना ध्वनि शक्ति | जैकेट के साथ ध्वनि शक्ति | नेट वजन / किग्रा) | तेल प्रभार (एल) | चूषण | स्राव होना |
|---|---|---|---|---|---|---|---|---|---|
| एमएलजेड015 | 2 | 31 | 1.1 | 3/4" | 1/2" | ||||
| MLZ019 | 2.5 | 43.5 | 7.6 | 65 | 57 | ||||
| एमएलजेड021 | 3 | 46.2 | 8 | ||||||
| एमएलजेड026 | 3.5 | 57.1 | 9.9 | 67 | 59 | ||||
| एमएलजेड030 | 4 | 68.8 | 12 | 70 | 62 | 37 | 1.6 | 7/8" | |
| एमएलजेड038 | 5 | 81 | 14.1 | 71 | 63 | ||||
| एमएलजेड045 | 6 | 98.6 | 17.2 | ||||||
| एमएलजेड048 | 7 | 107.5 | 18.7 | 72 | 64 | 3/4" | |||
| एमएलजेड058 | 7.5 | 126 | 21.9 | 74 | 66 | 44 | 2.7 | 1-1/8" | 7/8" |
| एमएलजेड066 | 9 | 148.8 | 25.9 | 45 | |||||
| एमएलजेड076 | 10 | 162.4 | 28.3 |
| tc\te | -15 | -10 | -5 | 0 | 5 | 10 | 15 |
|---|---|---|---|---|---|---|---|
| 25 | 5,853 | 7,392 | 9,238 | 11,389 | - | - | - |
| 30 | 5,541 | 7,022 | 8,808 | 10,898 | 13,292 | 15,987 | - |
| 35 | 5,226 | 6,640 | 8,357 | 10,378 | 12,700 | 15,323 | 18,246 |
| 40 | 4,912 | 6,249 | 7,889 | 9,830 | 12,071 | 14,612 | 17,452 |
| 45 | 4,600 | 5,851 | 7,404 | 9,256 | 11,407 | 13,857 | 16,604 |
| 50 | - | 5,449 | 6,905 | 8,659 | 10,711 | 13,060 | 15,705 |
| 55 | - | 5,045 | 6,394 | 8,041 | 9,984 | 12,223 | 14,757 |
| 60 | - | - | 5,874 | 7,404 | 9,229 | 11,349 | 13,762 |
| 65 | - | - | 5,347 | 6,751 | 8,449 | 10,440 | 12,722 |
| 70 | - | - | - | 6,083 | 7,644 | 9,497 | 11,640 |
| tc\te | -15 | -10 | -5 | 0 | 5 | 10 | 15 |
|---|---|---|---|---|---|---|---|
| 25 | 1,725 | 1,756 | 1,775 | 1,786 | - | - | - |
| 30 | 1,926 | 1,962 | 1,986 | 2,001 | 2,011 | 2,020 | - |
| 35 | 2,144 | 2,184 | 2,213 | 2,233 | 2,249 | 2,263 | 2,280 |
| 40 | 2,383 | 2,427 | 2,461 | 2,486 | 2,507 | 2,528 | 2,551 |
| 45 | 2,645 | 2,694 | 2,733 | 2,764 | 2,791 | 2,817 | 2,846 |
| 50 | - | 2,989 | 3,032 | 3,069 | 3,101 | 3,134 | 3,170 |
| 55 | - | 3,313 | 3,363 | 3,405 | 3,444 | 3,482 | 3,525 |
| 60 | - | - | 3,727 | 3,776 | 3,820 | 3,866 | 3,915 |
| 65 | - | - | 4,130 | 4,184 | 4,235 | 4,288 | 4,344 |
| 70 | - | - | - | 4,634 | 4,692 | 4,751 | 4,815 |
