उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| मॉडल संख्या: | NO.0-6 | Application: | Refrigeration Parts |
|---|---|---|---|
| Type: | orifice assembly | Refrigerant: | R134a, R22, R502,R12,R404,R507 |
| Export markets: | Global | Packing: | carton box |
| हाई लाइट: | refrigerator tools,danfoss expansion valve |
||

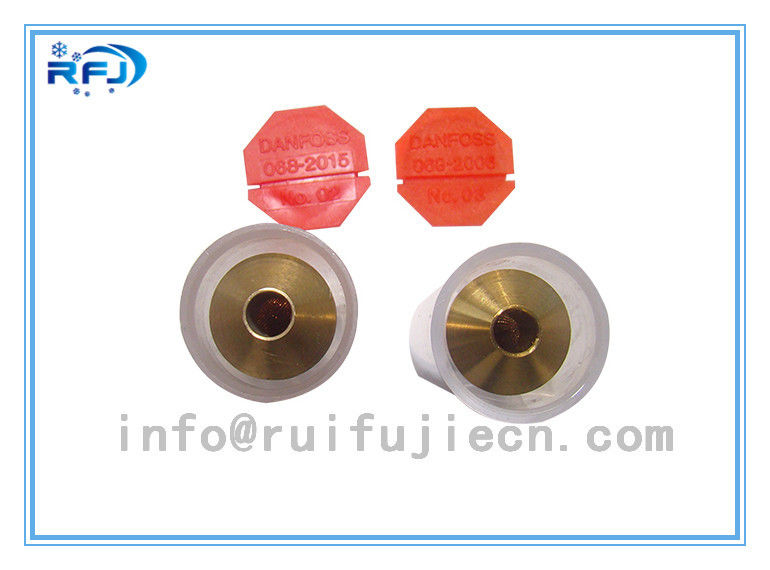

Thermostatic Expansion Valves Orifice-NO.00-06
1. TX2 / tex-2 X - represents the R22 refrigerant system；
2. TZ2 / TEZ2 Z - represents the R407C refrigerant system；
3. TN2 / TEN2 N - stands for R134A refrigerant system；
4. TS2 / TES2 S - represents the R404A/R507 refrigerant system；
5. TF2 / TEF2 F - stands for R12 refrigerant system；
6. TY2 / TEY2, Y - for the R502 refrigerant system；
The T2 / TE2 expansion valve of the above six refrigerant systems shall be based on the requirements of the refrigerating quantity of the flow number 0X ~ 06.
| Model T2 & TE2 - With Interchangeable Orifice Assembly |
|||||||
| Part Number |
(kW) | Orifice No. |
|||||
| R404A | R22 | R134a | |||||
| -40°to +10°C | -60° to -25°C | -40°to +10°C | -60°to -25°C | -40°to +10°C | -60°to -25°C | ||
| Orifice Assembly Nominal Capacity | |||||||
| 068-2002 | 0.38 | 0.38 | 0.5 | 0.5 | 0.4 | – | 0X |
| 068-2003 | 0.78 | 0.78 | 1 | 0.7 | 0.9 | – | 0 |
| 068-2010 | 1.68 | 1.68 | 2.5 | 1 | 1.8 | – | 1 |
| 068-2015 | 2.18 | 2.18 | 3.5 | 2.1 | 2.6 | – | 2 |
| 068-2006 | 4.28 | 3.58 | 5.2 | 2.8 | 4.6 | – | 3 |
| 068-2007 | 6.08 | 4.98 | 8 | 4.2 | 6.7 | – | 4 |
| 068-2008 | 7.78 | 6.08 | 10.5 | 5.2 | 8.6 | – | 5 |
| 068-2009 | 9.18 | 6.68 | 15.5 | 7 | 10.5 | – | 6 |
