उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| ब्रांड नाम: | Sanyo | Horse Powe: | 5HP |
|---|---|---|---|
| Displacement: | 83.2cm3/rev | starting method: | psc |
| capacity: | 17.9KW | kBTU/h: | 61.1 |
| w/w: | 3.03 | BTU/Wh: | 10.3 |
| compressor model: | C-SBR180H16Y | phase: | 1phase |
| Refrigerant: | R22 | Voltage: | 380V |
| Capacity: | 11900W | ||
| हाई लाइट: | scroll compressor refrigeration,copeland refrigeration compressors |
||

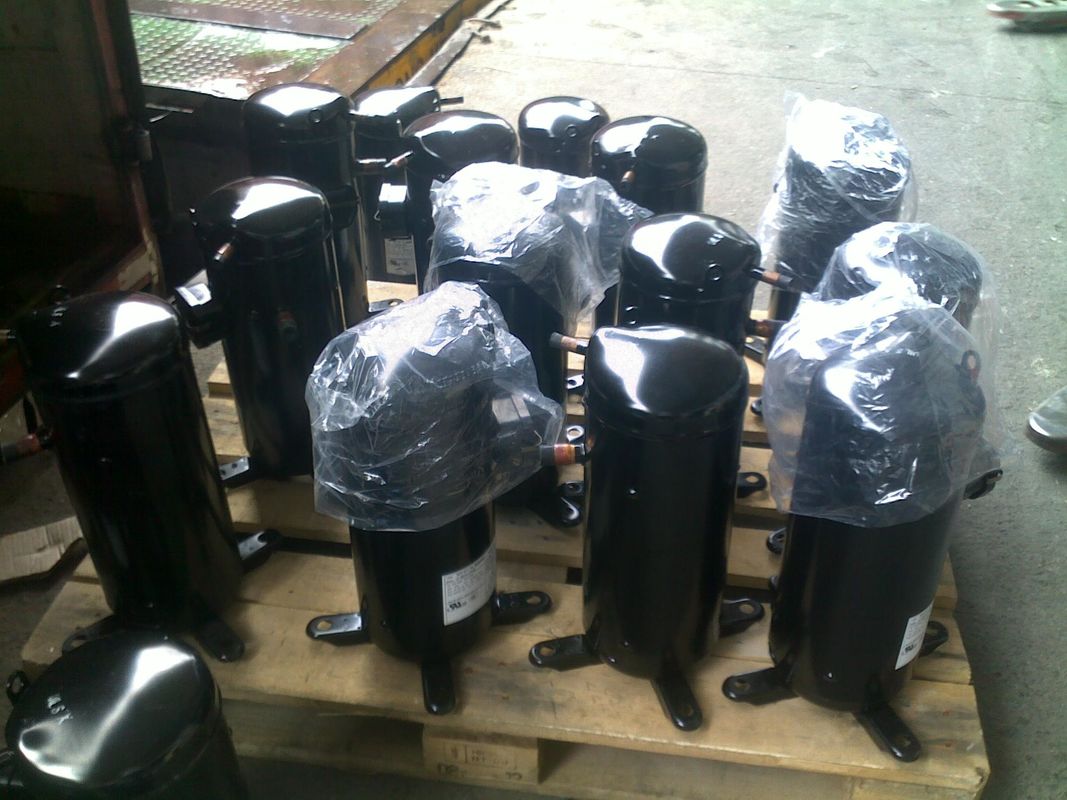

17900W C-SBR180H16Y 5HP Sanyo Hermetic Compressor for Heat Pump
SANYO Scroll Compressors are used in air conditioning, heat pump and commercial refrigeration including high, medium and low temperature applications.
SANYO Compressors take a leading position in current industry of medium and mini-type refrigeration machine and application in air-conditioners for the compact design, low sound and reliable operation.
Ø High efficiency for saving energy consumption.
Ø Low sound level ,quiet operation.
Ø Applied HFC refrigerant for protecting environment.
Ø High reliability, long lifetime.
SANYO COMPRESSORS are mainly applied in commercial freezing and cold storage showcase, cook room equipment, refrigerant storeroom, vessel refrigerant equipment, large-scale processing workshop, comprehensive distribution center, technical cooling setting, and split air-conditioner, central air-conditioner, and other refrigerant fields.
| R22 60HZ 208-230V | compressor model | Starting Method | 60HZ | |||||
| phase | out put HP | displacement Cm3/rev | KW | kBTU/H | W/w | BTU/WH | ||
| Capacity | COP | |||||||
| 1 | 3.5 | 55.7 | C-SBR120H16P | CSR | 11.9 | 40.6 | 3.09 | 10.5 |
| 4 | 66.8 | C-SBR145H16P | CSR | 14.4 | 49.2 | 3.2 | 10.9 | |
| 4.5 | 77.4 | C-SBR165H16P | CSR | 16.8 | 57.4 | 3.2 | 10.9 | |
| 5 | 83.2 | C-SBR180H16N | CSR | 18.1 | 61.8 | 3.12 | 10.7 | |
| 5 | 83.2 | C-SBR180H16Y | PSC | 17.9 | 61.1 | 3.03 | 10.3 | |
| 5.8 | 93.1 | C-SBR200H16Y | PSC | 19.9 | 67.9 | 3.06 | 10.4 | |
| 6 | 100 | C-SBR215H16Y | PSC | 21.5 | 73.4 | 3.05 | 10.4 | |
| 7 | 100.2 | C-SBR235H16Y | PSC | 23.4 | 79.9 | 3.1 | 10.6 | |
| C-SBR180H16Y | Compressor | ||||
| Application | Type | Hermetic Scroll | |||
| Evaporating Temp Range | (℃) | -15~12 | Displacement | (cm3/rev) | 55.7 |
| Refrigerant | R22 | Suction Line Connection | (Φmm OD) | 22.23 | |
| Compressor Cooling | Natural Cooling | Discharge Line Connection | (Φmm OD) | 12.7 | |
| Rated Performance | Oil Type | L-DRC/B56 | |||
| Capacity | (W) | 11900 | Initial Oil Charge | (ml) | 1700 |
| Input | (W) | 3800 | Mass(Incl.Oil) | (kg) | 38.5 |
| Current | (A) | 18.6 | Motor | ||
| Sound Pressure Level(1m) | (dB(A)) | 62max | Motor Type | 3Ph-Induction Motor | |
| Rating Conditions | Revolution | (min-1) | 3500 | ||
| Power Source | 3ph,60Hz,208-230V | Voltage Range | (V) | 187~253 | |
| Evaporating Temp | (℃) | 7.2 | Start Capacitor | MFD/V | 100~140/330 |
| Condensing Temp | (℃) | 54.4 | Run Capacitor | MFD/V | 60/440 |
| Suction Gas Temp | (℃) | 18.3 | RLA | (A) | 32.7 |
| Liquid Temp | (℃) | 46.1 | MCC | (A) | 45.8 |
| Ambient Temp | (℃) | 35 | LRA | (A) | 158 |
