Copeland स्क्रॉल कंप्रेसर
Created with Pixso. Copeland ZP Series ZP295KCE-TWD-522 for Refrigeration

Copeland ZP Series ZP295KCE-TWD-522 for Refrigeration

ब्रांड नाम: Copeland
मॉडल संख्या: ZP295KCE-TWD-522
एमओक्यू: एक टुकड़ा
कीमत: discussed
प्रसव का समय: 7-10 कार्य दिवसों भुगतान प्राप्त करने के बाद
भुगतान की शर्तें: टी / टी, वेस्टर्न यूनियन
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
CE
शीतल:
फ़्रेयॉन
प्रशीतक प्रकार:
R410 A या अन्य प्रकार
kW + 10WC / + 40ºC पर:
86.9
kW 0ºC / + 40ºC पर:
61.6
-5C / + 40ºC पर kW:
51.3
kW at -10WC / + 40ºC:
42.4
पैकेजिंग विवरण:
लकड़ी का पैकेज
आपूर्ति की क्षमता:
1000000 टुकड़े / वर्ष
प्रमुखता देना:

कोपलैंड एसी कंप्रेसर

,

रेफ्रिजरेशन स्क्रॉल कंप्रेसर

उत्पाद का वर्णन

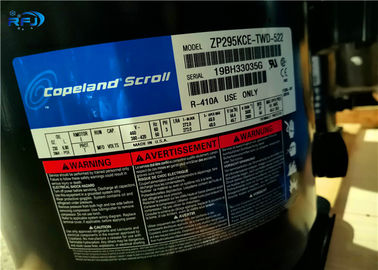

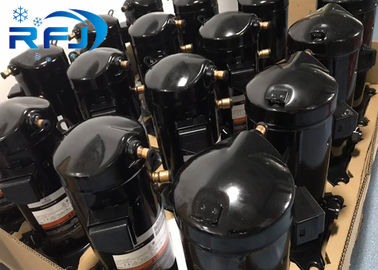

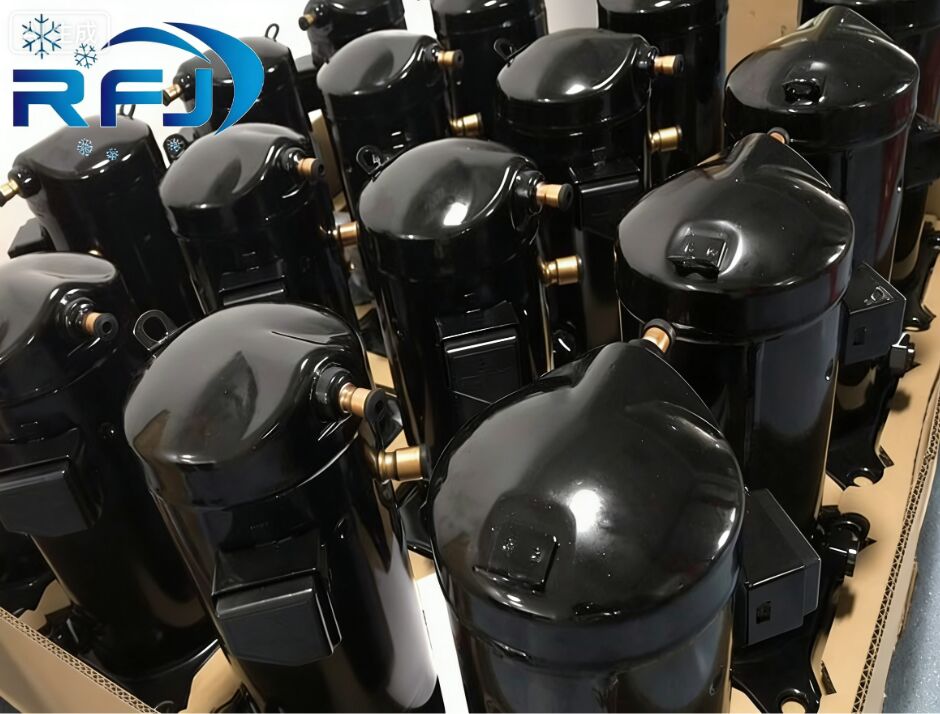

Copeland ZP Series ZP295KCE-TWD-522 for Refrigeration


Specifications
Brand: Copeland
Model: ZP295KCE-TWD-522
Refrigerant: Freon
Refrigerant type: R410 A or other types
kW at +10ºC/+40ºC: 86,9
kW at 0ºC/+40ºC: 61,6
kW at -5ºC/+40ºC: 51,3
kW at -10ºC/+40ºC: 42,4
Weight in kg: 160 kg.
Sizes: 450x380x720 mm (LxWxH)

Technical data
Displacement [m³/h]: 46,7
Sound power [dBA]: 85
Sound pressure level [dB]: 74
Net Weight [kg]: 160,0
Gross Weight [kg]: 188
Oil charge [dm³]: 6,8
Maximum high pressure [bar]: 45
Maximum standstill pressure [bar]: 29,5
Minimal lowside temperature [°C]: -35
Maximum lowside temperature [°C]: 50
PED category: 2

Electrical data
Power supply [V/~/Hz]: 380-420V/3/50Hz
Locked rotor current [A]: 272,0
Max. operating current [A]: 48,5
Winding resistance [Ω]: 0,5



Product name Refrigeration Compressor
Application HVAC
Compressor model ZP295KCE-TWD-522
MOQ 1 Set
Refrigerant R410A





FAQ

1,What is your MOQ?

Our MOQ is usually 1 set.

2,Shipping methods and lead time

By Express: 5-7 working days to your door (DHL, UPS, TNT, FedEx...).

By Air: 7-10 working days to your airport.

By Sea: Pls advise your port of destination, the exact days will be confirmed by our forwarders, and the following lead time is for your reference.

Europe and America (25 - 35 days), Asia (3-7 days), Australia ( 16-23 days).

3,What is your payment terms?

TT/WESTERN UNION

4, What are the main products?

Semi-hermetic compressor
Hermetic Compressor
Refrigeration Compressor Unit

5, Packaging & Shiping

Packing: wooden pallet, wooden case or with outer carton, or as per customers' specific requirements.




Copeland ZP Series ZP295KCE-TWD-522 for Refrigeration 0Copeland ZP Series ZP295KCE-TWD-522 for Refrigeration 1
