| ब्रांड नाम: | Copeland | मॉडल संख्या: | VRI54KS-TFP-542 |
|---|---|---|---|
| Fan speed: | Automatic | Working mode: | Cool |
| Material: | Copper | Refrigerant: | R22 |
| voltage: | 380V | ||
| हाई लाइट: | copeland ac compressor,copeland a c compressor |
||

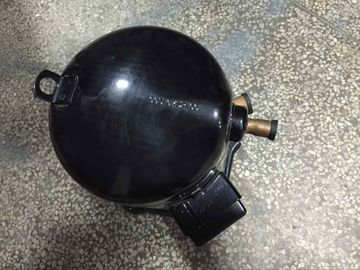

Copeland 380v / 50HZ 3Phase EVI compressor for air conditioner , VRI54KS-TFP-542
1) Environmentally friendly
2) Smaller compressor dimensions or smaller displacements possible
3) Low noise level, innovative compressor technology
4) Compact start equipment
5) Low energy consumption
6) High thermal working conditions
7) High product quality
8) Wide voltage range
| 220V/50HZ, 1phase R22 EVI | |||||||
| HP | cc/Rev. | model | kw | kw | w/w | A | KG |
| 2.5 | 41 | VRI30KS-PFS-582 | 7.35 | 2.27 | 3.24 | 11 | 22.1 |
| 2.8 | 46.2 | VRI34KF-PFS-582 | 8.25 | 2.61 | 3.16 | 11.8 | 22.1 |
| 380V/50HZ,3Phase EVI | |||||||
| HP | cc/Rev. | model | kw | kw | w/w | A | KG |
| 2.5 | 41 | VRI30KS-PFS-582 | 7.33 | 2.27 | 3.23 | 4.3 | 22.2 |
| 4.3 | 70.4 | VRI52KS-TFP-542 | 12.8 | 3.8 | 3.37 | 6.8 | 29.9 |
| 4.5 | 73.1 | VRI54KS-TFP-542 | 13.2 | 3.98 | 3.31 | 7.6 | 29.9 |
| 4.5 | 73.1 | VRI52KS-TFP-54E | 13.2 | 3.98 | 3.31 | 7.6 | 29.9 |
| 4.8 | 77.2 | VRI57KF-TFP-542 | 13.9 | 4.41 | 3.17 | 9.1 | 29 |
| 5.1 | 82.7 | VRI61KF-TFP-542 | 14.95 | 4.6 | 3.25 | 8.4 | 29 |
| 5.1 | 82.7 | VRI61KF-TFP-54E | 14.95 | 4.6 | 3.25 | 8.4 | 29 |
| 8 | 127.2 | VRI94KS-TFP-522 | 23.3 | 6.85 | 3.4 | 12.7 | 57.2 |
| 9 | 142.9 | VRI108KS-TFP-522 | 26.4 | 7.55 | 3.49 | 13.8 | 59.9 |
| 10.4 | 167.2 | VRI125KS-TFP-522 | 31 | 8.9 | 3.47 | 15.8 | 61.2 |
| 12 | 190.9 | VRI144KS-TFP-522 | 35 | 10.15 | 3.47 | 18.5 | 61.2 |
| (380V-420V)/50HZ,460V/60HZ,3Phase EVI | |||||||
| HP | cc/Rev. | model | kw | kw | w/w | A | KG |
| 8 | 127.2 | ZRI94KC-TFD-522 | 23.3 | 6.85 | 3.4 | 12.7 | 57.2 |
| 9 | 142.9 | ZRI108KC-TFD-522 | 26.4 | 7.6 | 3.47 | 13.8 | 59.9 |
| 10.4 | 167.2 | ZRI125KC-TFD-522 | 31 | 8.9 | 3.47 | 15.8 | 61.2 |
| 12 | 190.9 | ZRI144KC-TFD-522 | 35 | 10.1 | 3.47 | 18.5 | 61.2 |
| MODEL | PH | cooling capacity | Input Power | EER | voltage | frequency | running current | refrigerant | external dimension | ||
| btu/hr | w | btu/wxhr | COP | ||||||||
| W | W/W | V | A | ||||||||
| ZR42K3-TF5 | 3 | 34600 | 10200 | 3130 | 11.10 | 3.3 | 200/220 | 50Hz | 10.60 | R410A | P10 |
| ZR45K3-PFJ | 1 | 38200 | 11200 | 3380 | 11.30 | 3.3 | 200/240 | 50Hz | 16.40 | R410A | P13 |
| ZR45K3-TFD | 3 | 37500 | 11000 | 3320 | 11.30 | 3.3 | 380/420 | 50Hz | 5.90 | R410A | P13 |
| ZR45K3-TF5 | 3 | 37500 | 11000 | 3320 | 11.30 | 3.3 | 200/220 | 50Hz | 11.80 | R410A | P13 |
| ZR45KC-TFD | 3 | 37900 | 11200 | 3320 | 11.40 | 3.4 | 380/420 | 50Hz | 6.10 | R410A | P13 |
| ZR46K3-TF5 | 3 | 38100 | 11200 | 3440 | 11.10 | 3.3 | 200/220 | 50Hz | 10.40 | R410A | P15 |
| ZR46K3-TFD | 3 | 38100 | 11200 | 3440 | 11.10 | 3.3 | 380/420 | 50Hz | 6.00 | R410A | P15 |
| ZR46KC-TF5 | 3 | 37600 | 11100 | 3390 | 11.10 | 3.3 | 200/220 | 50Hz | 13.20 | R410A | P12 |
| ZR46KC-TFD | 3 | 37600 | 11100 | 3390 | 11.10 | 3.3 | 380/420 | 50Hz | 6.90 | R410A | P12 |
| ZR47K3-PFJ | 1 | 39400 | 11600 | 3460 | 11.40 | 3.4 | 200/220 | 50Hz | 16.80 | R410A | P14 |
| ZR47K3-TFD | 3 | 38800 | 11400 | 3430 | 11.30 | 3.3 | 380/420 | 50Hz | 6.00 | R410A | P14 |
| ZR47K3-TF5 | 3 | 38800 | 11400 | 3560 | 10.90 | 3.2 | 200/220 | 50Hz | 12.90 | R410A | P14 |
| ZR47KC-TFD | 3 | 39400 | 11600 | 3430 | 11.50 | 3.4 | 380/420 | 50Hz | 6.30 | R410A | P14 |
| ZR47KC-TF5 | 3 | 39400 | 11600 | 3490 | 11.30 | 3.3 | 200/220 | 50Hz | 13.80 | R410A | P14 |
| VR48KS-TFP | 3 | 40500 | 11900 | 3600 | 11.30 | 3.3 | 380 | 50Hz | 6.10 | R410A | P19 |
| VR54KS-TFP | 3 | 45000 | 13200 | 3920 | 11.50 | 3.4 | 380 | 50Hz | 7.40 | R410A | P19 |
| VR57KF-TFP | 3 | 47500 | 14000 | 4320 | 11.00 | 3.2 | 380 | 50Hz | 9.10 | R410A | P19 |
| VR57KS-TFP | 3 | 47500 | 14000 | 4130 | 11.50 | 3.4 | 380 | 50Hz | 7.75 | R410A | P19 |
| ZR57KH-TFD | 3 | 47800 | 14100 | 4190 | 11.40 | 3.4 | 380 | 50Hz | 7.40 | R410A | P15 |
| VR61KF-TFP | 3 | 51000 | 15000 | 4630 | 11.00 | 3.2 | 380 | 50Hz | 8.30 | R410A | P19 |
| ZR61KH-TFD | 3 | 51100 | 15000 | 4440 | 11.50 | 3.4 | 380/420 | 50Hz | 7.80 | R410A | P15 |
| ZR68KC-PFJ | 1 | 57000 | 16800 | 5130 | 11.60 | 3.3 | 220/240 | 50Hz | 24.50 | R410A | P12 |
| ZR68KC-TF5 | 3 | 57500 | 16900 | 4960 | 11.60 | 3.4 | 200/220 | 50Hz | 17.10 | R410A | P12 |
| ZR68KC-TFD | 3 | 57500 | 16900 | 4960 | 11.60 | 3.4 | 380/420 | 50Hz | 8.60 | R410A | P12 |
| ZR72KC-TF5 | 3 | 60500 | 17800 | 5180 | 11.70 | 3.4 | 200/220 | 50Hz | 18.40 | R410A | P12 |
| ZR72KC-TFD | 3 | 60500 | 17800 | 5180 | 11.70 | 3.4 | 380/420 | 50Hz | 8.80 | R410A | P12 |
| ZR81KC-TF5 | 3 | 67500 | 19800 | 5960 | 11.30 | 3.3 | 200/220 | 50Hz | 22.00 | R410A | P17 |
| ZR81KC-TFD | 3 | 68000 | 20000 | 5810 | 11.70 | 3.4 | 380/420 | 50Hz | 10.50 | R410A | |
