| Capacity R22: | 138.4 KW | Surface: | 483 ㎡ |
|---|---|---|---|
| Circuit Vol: | 60 Dm³ | Tube Length: | 437 m |
| Fan Mot: | 3 | Pole Number: | 8P |
| Air Flow: | 35550 m³/h | Fan Mot.Amper: | 7.2 A |
| Fan Mot.Power: | 3150 W | Noise: | 50 dBA |
| In Tube: | 2-1/8 inch | Out Tube: | 2-1/8 inch |
| Net weight: | 590 KG | ||
| हाई लाइट: | air cooled condenser in refrigeration,air cooled condenser unit |
||

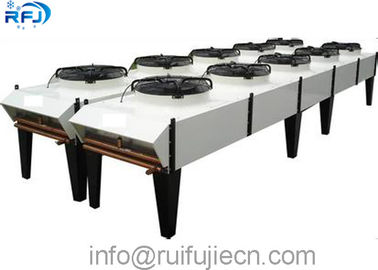

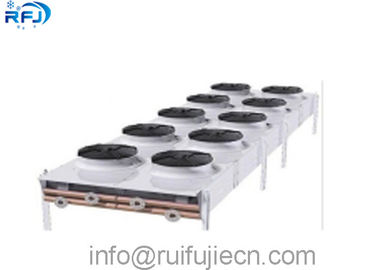

Table-Type Condensers Model Kp803A4-Ln Low Noise 3 Axial Fan
various noise levels.
units suitable for hfc working fluids.
Features
• high efficiency coil
• low noise
• reduced coils volume/refrigerant charge condensers.
• energy saving fans
download catalogo applications
• horizontal and vertical air flow condensers.
• different available air-cooled
As one of China’s leading exporters in the refrigeration field we have proudly represented the following brands and products for many years.
Names such as : , Bock,Carrier,Copeland, ,Tecumseh,and Sanyo supplying there ultra-reliable products eg compressors, condensing unit, condenser, evaporator ,refrigeration oil, and various kinds of refrigeration valves controls and tools
Our main compressor lines are :
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Copeland compressors: VR, ZR, ZB, ZH SERIES
· Maneurop piston compressors:MT, MTZ NTZ, MPZ SERIES
| ModeIs | KP803A3-LN | KP803A4-LN | KP804A3-LN | KP804A4-LN | KP805A3-LN | KP805A4-LN |
| Capacity KW | 124.8 | 138.4 | 166.4 | 183.4 | 206.7 | 231.9 |
| Capacity KW | 136 | 150.9 | 181.9 | 200.9 | 222.2 | 251 |
| Capacity KW | 118.2 | 133.7 | 157.6 | 178.4 | 188.1 | 222 |
| surface m² | 362 | 483 | 483 | 644 | 604 | 805 |
| Circuit Vol.d m³ | 45 | 60 | 60 | 80 | 75 | 100 |
| Tube Length m | 328 | 437 | 437 | 582 | 546 | 728 |
| Fan Mot.Φmm×n° | 800×3 | 800×3 | 800×4 | 800×4 | 800×5 | 800×5 |
| Pole Number | 8P | 8P | 8P | 8P | 8P | 8P |
| Air FIow m³/h | 39150 | 35550 | 52200 | 47400 | 65250 | 59250 |
| Fan Mot.Amper A | 7.2 | 7.2 | 9.6 | 9.6 | 12 | 12 |
| Fan Mot.Pmper W | 3150 | 3150 | 4200 | 4200 | 5250 | 5250 |
| Noise dBA | 50 | 50 | 51 | 51 | 52 | 52 |
| In Tube inch | 2-1/8 | 2-1/8 | 2-1/8 | 2-1/8 | 2-1/8 | 2-1/8 |
| Out Tube inch. | 2-1/8 | 2-1/8 | 2-1/8 | 2-1/8 | 2-1/8 | 2-1/8 |
| Net Weight Kg | 553 | 590 | 718 | 768 | 892 | 954 |
| Drawing No. | 7 | 7 | 8 | 8 | 9 | 9 |
| ModeIs | KP502A3-LN | KP502A4-LN | KP602A3-LN | KP602A4-LN | KP603A3-LN | KP603A4-LN |
| Capacity KW | 26.4 | 29.2 | 41.8 | 46.2 | 62 | 69.5 |
| Capacity KW | 28.7 | 31.7 | 45.2 | 50.1 | 68.3 | 75.3 |
| Capacity KW | 25.7 | 29.1 | 39.9 | 45.8 | 61.8 | 68.1 |
| surface m² | 61 | 81 | 85 | 113 | 127 | 169 |
| Circuit Vol.dm³ | 10 | 13 | 14 | 18 | 20 | 27 |
| Tube Length m | 125 | 166 | 173 | 230 | 259 | 346 |
| Fan Mot.Φmm×n° | 500×2 | 500×2 | 600×2 | 600×2 | 600×3 | 600×3 |
| Pole Number | 6P | 6P | 6P | 6P | 6P | 6P |
| Air FIow m³/h | 7300 | 6900 | 12800 | 11600 | 19200 | 17400 |
| Fan Mot.Amper A | 1.1 | 1.1 | 2.8 | 2.8 | 4.2 | 4.2 |
| Fan Mot.Pmper W | 460 | 460 | 1000 | 1000 | 1500 | 1500 |
| Noise dBA | 45 | 45 | 46 | 46 | 48 | 48 |
| In Tube inch | 7/8 | 7/8 | 7/8 | 1-1/8 | 1-3/8 | 1-3/8 |
| Out Tube inch. | 5/8 | 5/8 | 5/8 | 7/8 | 1-1/8 | 1-1/8 |
| Net Weight Kg | 72 | 80 | 102 | 111 | 138 | 154 |
| Drawing No. | 4 | 4 | 5 | 5 | 6 | 6 |
