| Channel: | Straight Through Type | Type: | Fixed Ball Valve |
|---|---|---|---|
| Application: | Industrial Usage, Water Industrial Usage, Household Usage | Material: | Brass |
| Connection Form: | Welding | ||
| हाई लाइट: | refrigeration and air conditioning tools and equipment,refrigerator tools |
||

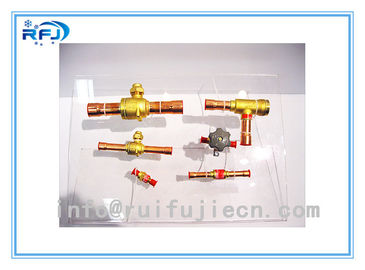

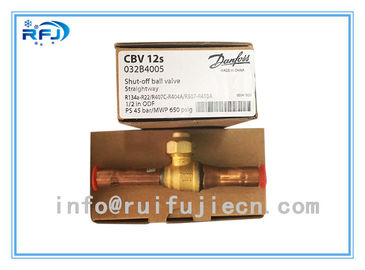

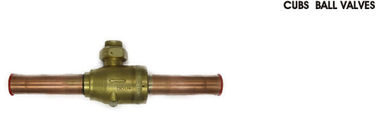

CUBS CBV Type Refrigeration Compressor Parts Brass Ball Valve
Description
CUBS ball valves are manually operated shut-off valves suitable for bi-directional flow. GBC valves are used in liquid, suction and hot gas lines in refrigeration, freezing and air conditioning systems. GBC valves offer maximum tightness, both externally as well as internally across the seat.
CUBS valves give maximum flow in the fully open position. They are designed for operation in all temperature conditions without problems occurring as a result of liquid being trapped internally.
Features
Flow without pressure drop
¼ Turn from fully open to fully closed valve
Rotation stop for fully open and fully closed valve
Arrow on spindle top to indicate valve closed or open
Can be panel mounted
Bi-directional flow, i. E. Valve orientation is unimportant
"Hermetically" sealed welded construction
Patented spindle seal
Valve seat of special teflon
Burst-proof spindle design
The valve design prevents liquids of beeing trapped internally
RefrigerantsCFC, HCFC, HFC
Temperature of medium-40 +150° C
Ambient temperature-50 +80° C
Permissible working pressure PB35 bar
Max. Pressure46 bar
Max. Permissible leakage to atmosphere< 2.8 gram R22/year
Approvals UL, CSA
| type | in | type | in |
| Without detection mouth | Take detection mouth | ||
| CBV6S | 1/4" | CBVdD6S | 1/4" |
| CBV10S | 3/8" | CBVD10S | 3/8" |
| CBV12S | 1/2" | CBVD12S | 1/2" |
| CBV16S | 5/8" | CBVD16S | 5/8" |
| CBV18S | 3/4 " | CBVD18S | 3/4 " |
| CBV22S | 7/8" | CBVD22S | 7/8" |
| CBV28S | 1-1/8" | CBVD28S | 1-1/8" |
| CBV35S | 1-3/8" | CBVD35S | 1-3/8" |
| CBV42S | 1-5/8" | CBVD42S | 1-5/8" |
| CBV54S | 2-1/8" | CBVD54S | 2-1/8" |
| CBV67S | 2-5/8" | CBVD67S | 2-5/8" |
| CBV79S | 3-1/8" | CBVD79S | 3-1/8" |
| CBV102S | 4" | CBVD102S | 4" |
